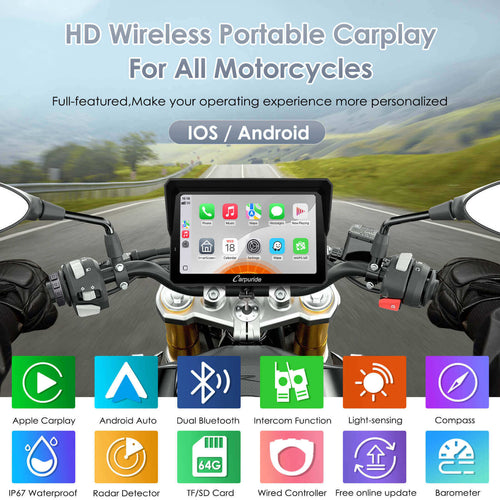

Carpuride - 7 inch Waterproof Carplay with Radar BSD - W702RS PRO + TPMS
Industry-First Radar BSD Technology
Radar Blind Spot Detection + BM05 Plug-and-Play Bracket + TPMS Option Available
The only universal motorcycle stereo system with integrated radar detection to keep you safe in blind spots and lane changes.
Universal Motorcycle CarPlay with Radar BSD
The Carpuride 702RS Pro combines advanced safety technology with seamless smartphone integration. Featuring industry-first Radar Blind Spot Detection, universal BM05 bracket for easy installation, and 7-inch HD display with wireless CarPlay/Android Auto. Perfect for riders who prioritize safety without compromising on connectivity.
Radar Blind Spot Detection (BSD) System
How it works:
- Real-time monitoring: Radar sensor detects vehicles approaching from behind
- Visual alerts: On-screen warnings when vehicles enter your blind spot
- Lane change safety: Know when it's safe to change lanes or overtake
- Accident prevention: Reduces risk of side-swipe collisions by up to 70%

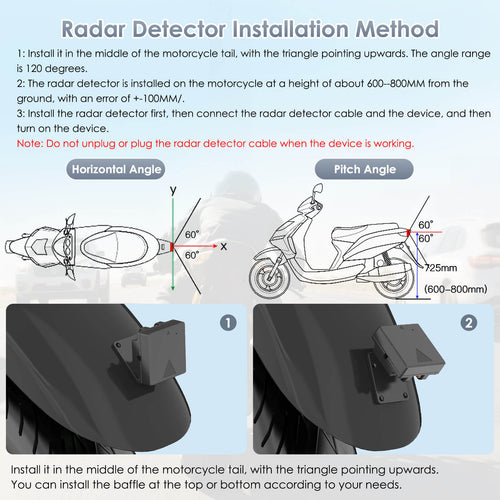

Important Installation Requirements
For accurate radar detection, please follow these guidelines:
- Mounting Position: Install the radar sensor perpendicular to the ground. The radar should be mounted at a height of 75-90cm (30-35 inches) from the ground for optimal detection range.
- Clear Detection Zone: Ensure there are NO metal objects (especially license plates, luggage racks, or exhaust pipes) in front of or behind the radar sensor. Metal interference can cause false alerts or reduce detection accuracy.
- Enable Radar Function: After physical installation, go to Settings menu on the 702RS Pro and turn ON the radar function to activate blind spot detection.
💡 Pro Tip: Test the radar in a safe area after installation. Ride at low speed and have another vehicle approach from behind to verify the system is working correctly.
SOS Emergency Call
Automatically detects crashes and initiates a countdown. If no response is given, the system calls your emergency contact to ensure help arrives when needed.
Plug-and-Play BM05 Bracket
Universal mounting system fits ANY motorcycle (12-28mm handlebars). Install in 5 minutes. No drilling, no modifications.
TPMS Tire Pressure Monitoring System
Real-time tire pressure and temperature monitoring for enhanced riding safety. The TPMS system displays critical tire data directly on your 702RS Pro screen, helping you maintain optimal tire performance and prevent blowouts.
How it works:
- Wireless sensors: Install on both front and rear tire valves
- Real-time monitoring: Displays pressure and temperature on screen while riding
- Instant alerts: Get warnings for low pressure
- Easy installation: Replace existing valve caps with TPMS sensors
💡 TPMS Option: Select the TPMS version when adding to cart to include wireless tire pressure sensors for both tires. Sensors are pre-paired and ready to use.

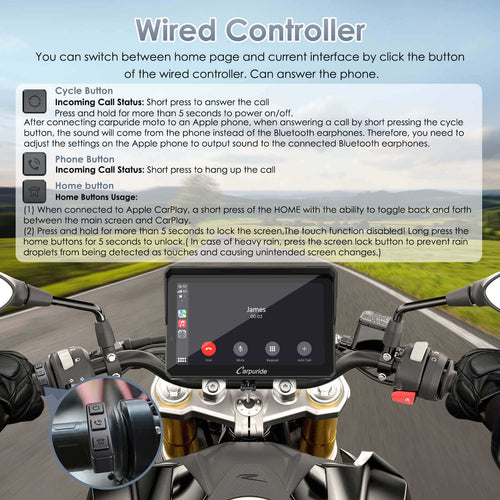

Handlebar Wired Controller
Included wired controller mounts to your handlebars for easy access:
- Cycle Button: Short press to switch between front/rear camera, long press to take photo
- Phone Button: Short press to answer/hang up calls, long press to reject call
- Home/Lock Button: Short press to return to main interface, long press (3 seconds) to lock screen
- Safe operation: Control without taking hands off handlebars
⚠️ Note: When using an Android phone, the cycle button does not support answering incoming calls. iPhone users can answer calls normally using the wired controller.
Technical Specifications
- Display: 7-inch IPS touchscreen, 2.5D curved glass, 1024x600 resolution, 1000 nits brightness (sunlight readable)
- Connectivity: Wireless CarPlay, Android Auto, Dual Bluetooth 5.0
- Safety Features: Radar Blind Spot Detection (BSD) system with real-time alerts, TPMS support (optional)
- Mounting: BM05 universal plug-and-play bracket (fits 12-28mm handlebars, 360° rotation, quick-release design)
- Waterproof: IP67 rated (submersible up to 1 meter for 30 minutes, dust-tight)

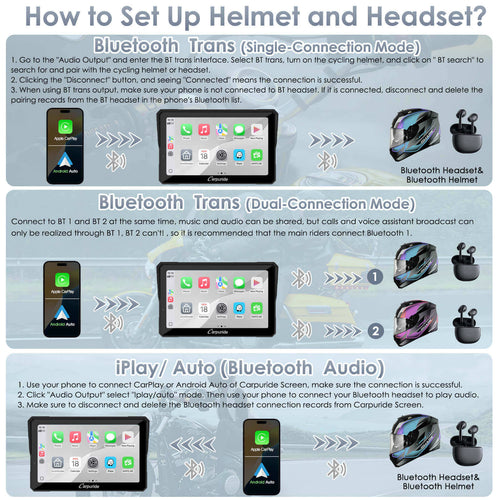

- Audio: Dual Bluetooth 5.0 with 2-rider intercom function (up to 10 meters range)
- Storage: TF/SD card support (up to 64GB for music and media)
- Sensors: Compass, barometer, automatic light sensor, radar sensor
- Power: 12V DC (direct battery connection with hardwire cable) or USB-A port (5V, 3A minimum)
- Control: Handlebar wired controller included (single click to switch screens, long press for calls)
- Temperature Range: Operating: -20°C to 60°C (-4°F to 140°F)
- Updates: Free online OTA (Over-The-Air) updates + TF card firmware updates
- Special Features: Radar BSD, TPMS display, dual Bluetooth, intercom, compass, barometer, wired controller, auto brightness
